FSW 2x2B SM Optical Switch 1310nm 1550nm 900um 0.5M Optical Switch Latching /Non-Latching
Product Description
Hilink's FSW-2×2B Optical Switch, which is famous for its high performance, low insertion loss and compact .
This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.
It is an ideal component for OADM, OXC, OLP system monitoring and protection.
Features
* Low Insertion Loss
* Wide Wavelength Range
* High Channel Isolation
* High Return Loss
* Low PDL
* Low Crosstalk
* High Stability and Reliability
* Epoxy-free on Optical Path ·Latching and Non-latching
| Parameters | Unit | HL-FSW-2x2B |
| Wavelength Range | nm | 1260 ~ 1650 |
| Test Wavelength | nm | 1310 / 1550 |
| Insertion Loss 1, 2 | dB | Typ: 0.6 | Max: 0.8 |
| Return Loss 1, 2 | dB | SM ≥ 50 |
| Crosstalk 1 | dB | SM ≥ 55 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Operating Voltage | V | 3 or 5 |
| Durability | Cycles | ≥ 10 Million |
| Switching Time | ms | ≤8 |
| Optical Power | mW | ≤500 |
| Operating Temperature | ℃ | -20 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Relative Humidity | % | 5 ~ 95 |
| Weight | g | 14 |
| Dimension | mm | 27x12x8.2 ±0.2 or customised |
Applications
* R&D in Laboratory
* System Monitoring
* OADM
* MAN (Metropolitan Area Network)

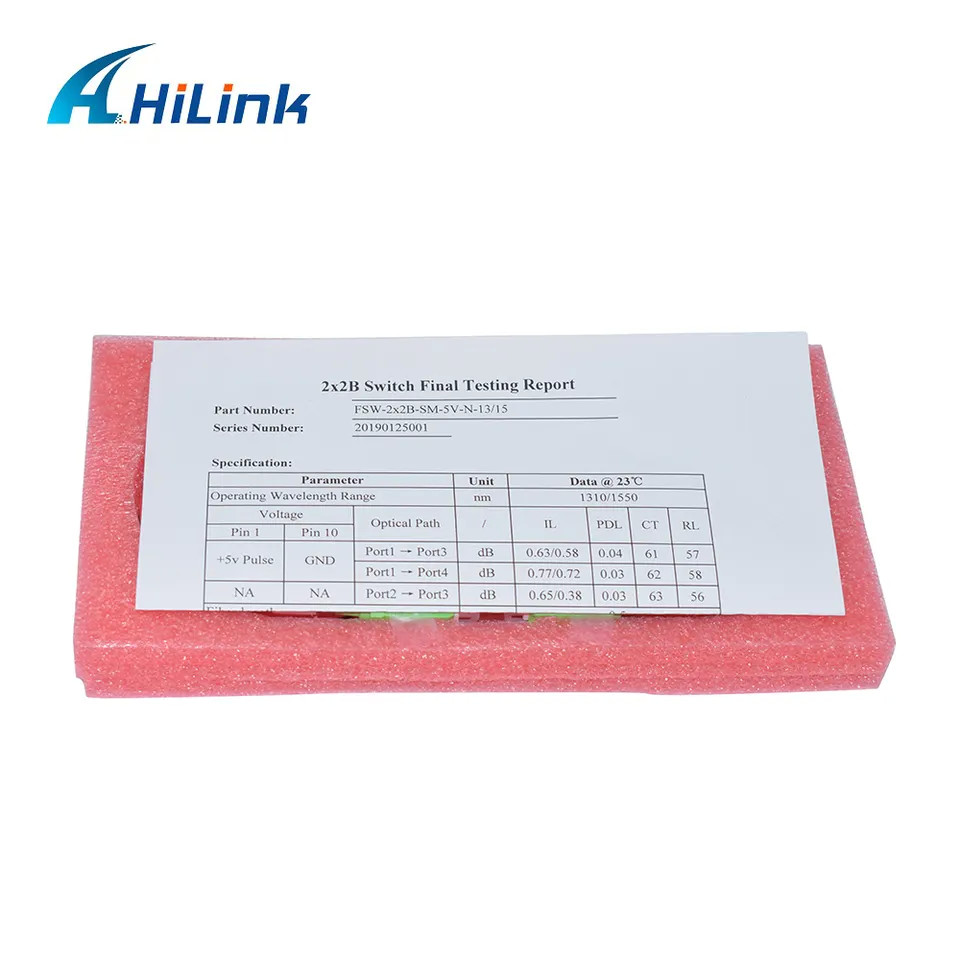

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your payment term?
T/T, Western Union or Paypal.
5. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
6. Could I use our own logo and label?
